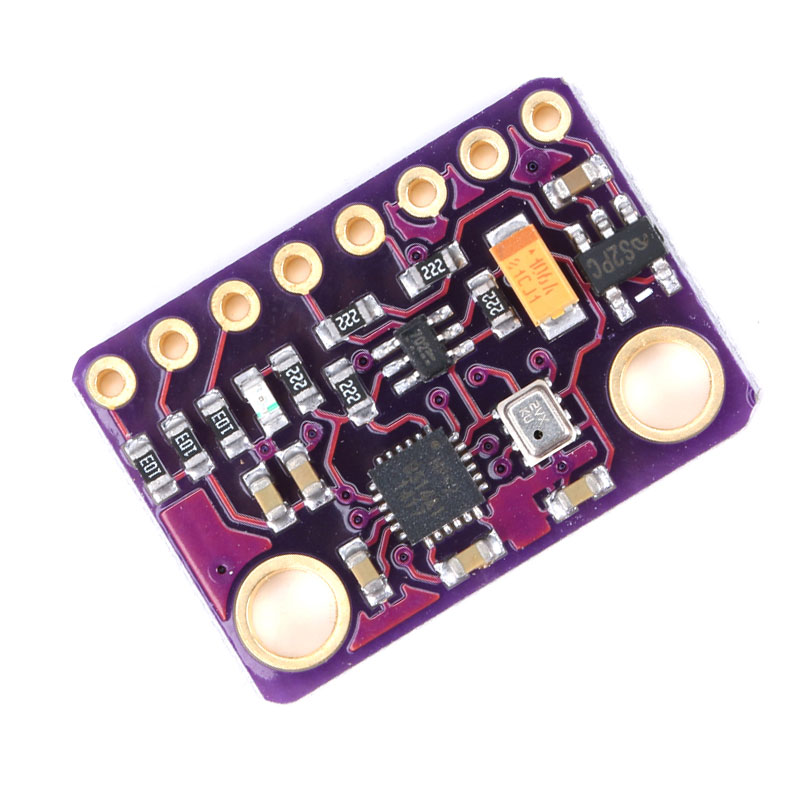

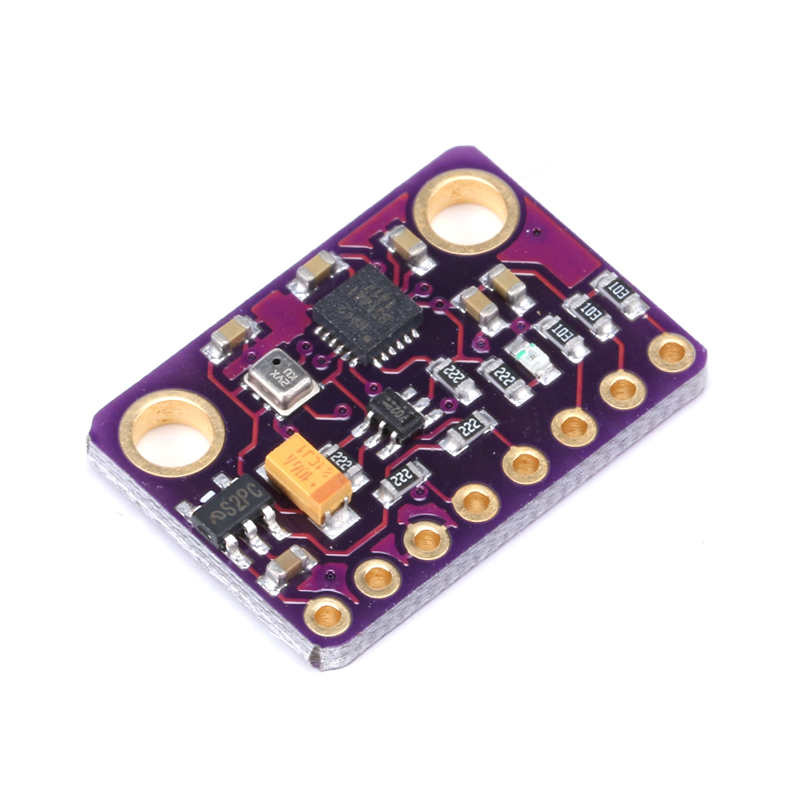

MPU9250 + BMP280 module
(triaxial gyroscope + triaxial accelerometer + triaxial magnetic field + pressure)

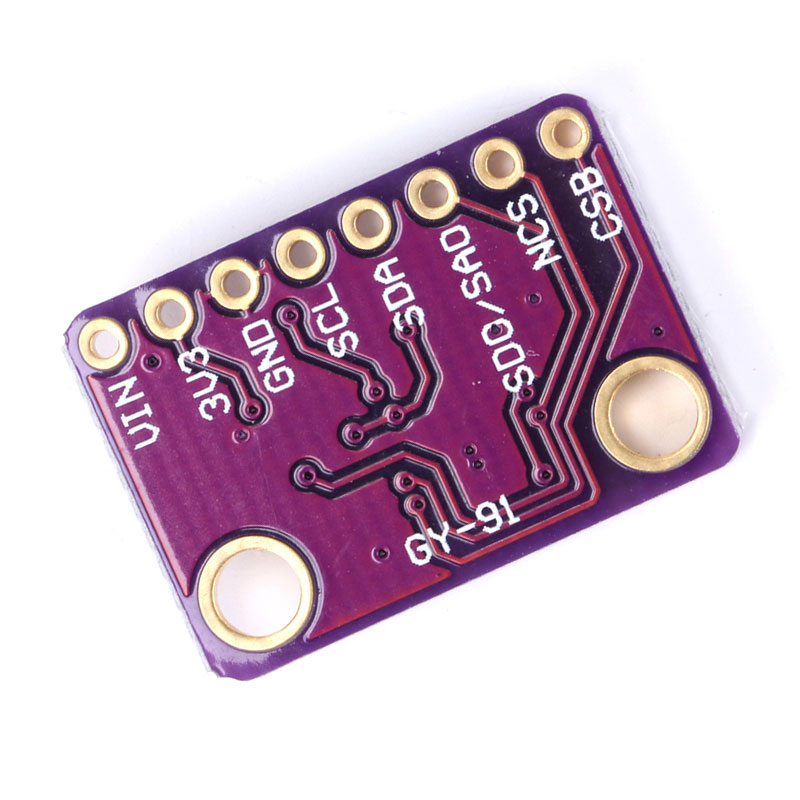

module Model: GY-91
use the chip: MPU-9250 + BMP280
power supply: 3-5 V (internal regulator with low voltage drop)
communication: standard IIC / SPI communication protocol
-chip 16bit ATS, 16-bit data output
Gyroscopes range: ¡À 250 500 1000 2000 ¡ã / s
acceleration range: ¡À 2 ¡À 4 ¡À 8 ¡À 16 g
field values: ¡À 4800uT
pressure range: 300-1100hPa
use of PCB Gold Dips, machine welding process to ensure quality

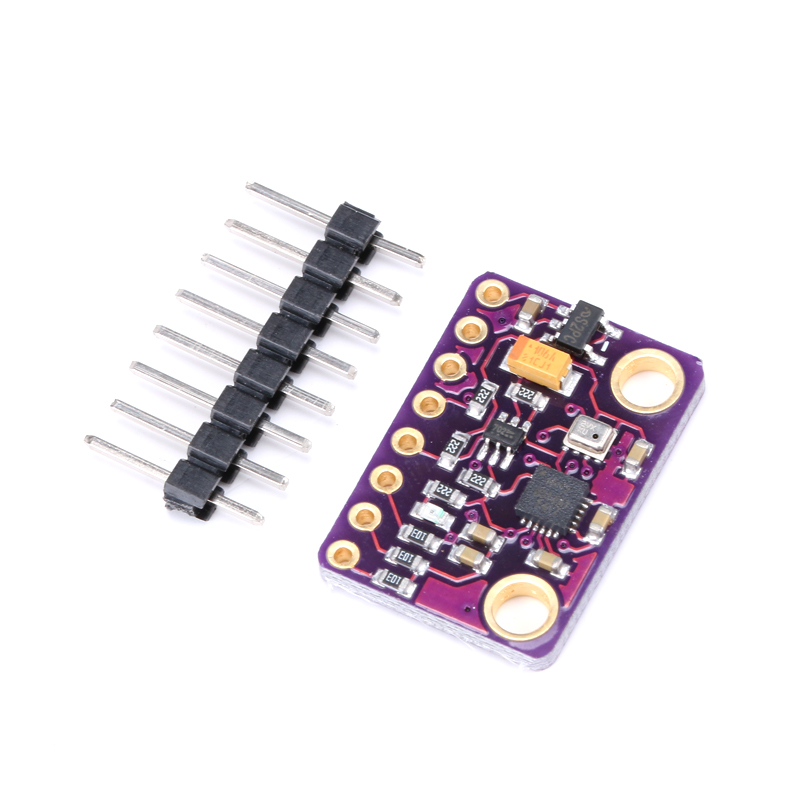

2.54 mm pitch
module size 14.3 mm * 20.5 mm
